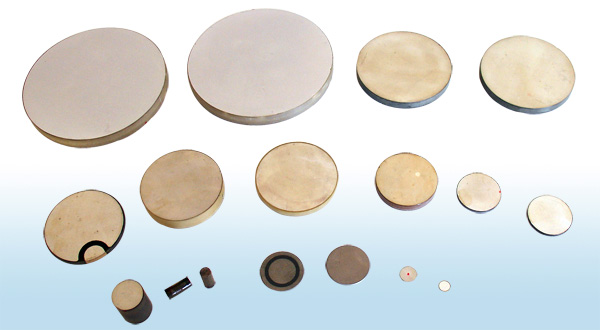

Piezoelectric ceramic wafers for ultrasonic atomizer

Pbulish：admin　　time：2008年03Month21Day

型號及規格	外型尺寸 直徑×厚度	主要技術特征
型號及規格	外型尺寸 直徑×厚度	fr(MHz)	Zr(Ω)	Kr
HF-25/1.65M	φ25×1.2	1.65	≤2	≥0.47
HF-20/1.65M	φ20×1.2	1.65	≤2.5	≥0.47
