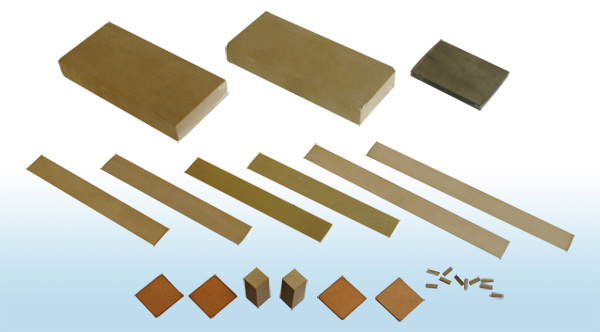

Chip series for medical B-ultrasonic transducer

Pbulish：admin　　time：2008年03Month21Day

型號及規(guī)格	外型尺寸(mm)　　　長×寬× 厚度	主要技術特性
		fr(MHz)	K31	E T 3
				r
HF-B3.5M	(80-130)×(13-16)×0.4	3.5	≥0.37	2200-3000
HF-B5.0M	(60-110)×(12-15)×0.3	5.0	≥0.36
HF-B7.5M	(50-100)×(10-14)×0.2	7.5	≥0.35
