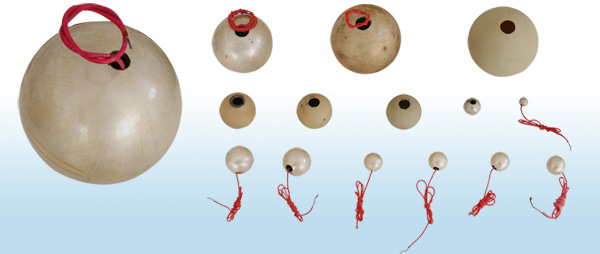

Hollow sphere crystal series

Pbulish：admin　　time：2008年03Month22Day

型號及規(guī)格	外型尺寸(mm) 長×寬× 厚度			主要技術特性
	球徑	開口直徑	壁厚	fr(MHz)	Kr	C(nf)
	球徑	開口直徑	壁厚	fr(MHz)	Kr	P-33	P-52	P-81
Sφ5	Sφ5	φ1.5	0.5	320	0.4	1.8	3.5
Sφ10	Sφ10	φ3	0.8	160	0.4	4.7	8.8
Sφ15	Sφ15	φ4	1	113	0.4	9.2	17.3
Sφ20	Sφ20	φ5	1～1.5	77	0.4	17.0	32.0
Sφ25	Sφ25	φ5	1～1.5	61	0.4	17.4	32.8
Sφ30	Sφ30	φ6	1.5～3	50	0.4	23.5	44.3
Sφ40	Sφ40	φ7	2～4	38	0.4	34.3	64.6
Sφ50	Sφ50	φ8	2～4	30	0.4	54.8	103.2
SR12.5	SR12.5	φ3.5	2～5	83		6.2		3.7
SR25	SR25	φ8	2～5			26.2		15.6
SR37.5	SR37.5	φ10	2～5					17.7
SR50	SR50	φ12	3～6					25.5
